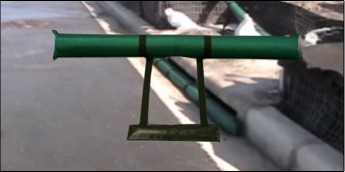

Curb Inlet Filter

The Curb Inlet Filter makes protecting curb opening inlets effective and easy. At 72” in length, the Curb Inlet Filter is longer than most single curb openings providing complete inlet coverage. Built for durability, the Curb Inlet Filter is encased in a high density polyethylene fabric, secured with 4 thread poly lock stitching and an 85% U.V. rating designed to handle even the most severe climates.

The inner workings consist of Aspen wood excelsior tightly rolled around a 3/4” PVC pipe with a coupler at one end allowing you to extend the Curb Inlet Filter to your desired length (spacer can be provided). Encompassing the Curb Inlet Filter are 2 polypropylene straps that act as ‘handles’ to aid in placing and removing the device with ease. Extending from the handles is a pouch of durable geotextile that is capable of holding up to 5 lbs. of rock. This pouch, hidden from view inside the drain inlet basin, acts as a stabilizer for the filter. For slopes and added protection on level grade, use Silt Sifter Bags on opposite ends.

Quick Look

• Outer Material High density polyethylene - Poly thread (4) lock stitching

• Strapping Weather resistant 2" polypropylene webbing

• UV Rating 85% with 364º flammability point

• Filtering Media Aspen wood excelsior

• Dimensions 72" x 5" diameter (units can be joined to extend length)

Spec Sheet

Click to view

Curb Inlet Filter Testing Report

Click the TRI logo above to visit their site
